A solar power system is made up of several important components, including solar panels, mounting structures, electrical protection, monitoring systems, and, most importantly, the solar inverter.

While solar panels generate electricity from sunlight, the electricity they produce cannot normally be used directly by most electrical equipment. This is where the solar inverter becomes essential.

So, what is a solar inverter, how does it work, and why is it one of the most important components in a solar energy system?

In this guide, we will explain the function of a solar inverter, how it converts solar energy into usable electricity, the different types of solar inverters, and how modern inverter technology is evolving for commercial and industrial applications.

What Is a Solar Inverter?

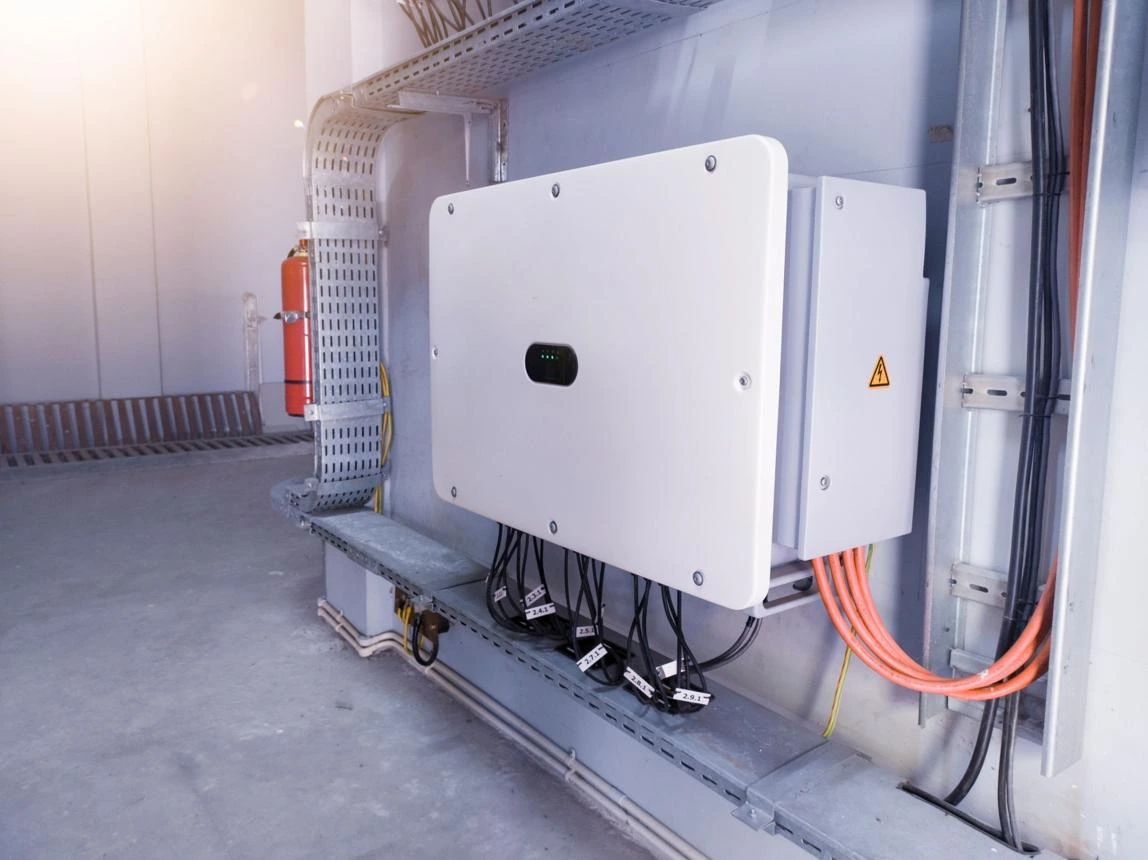

A solar inverter is an electronic device that converts the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used by electrical equipment or integrated into an electrical grid.

Solar panels generate DC electricity when exposed to sunlight.

However, most buildings, factories, commercial facilities, and electrical grids operate using AC electricity.

The solar inverter acts as the bridge between the photovoltaic system and the electrical loads.

In simple terms:

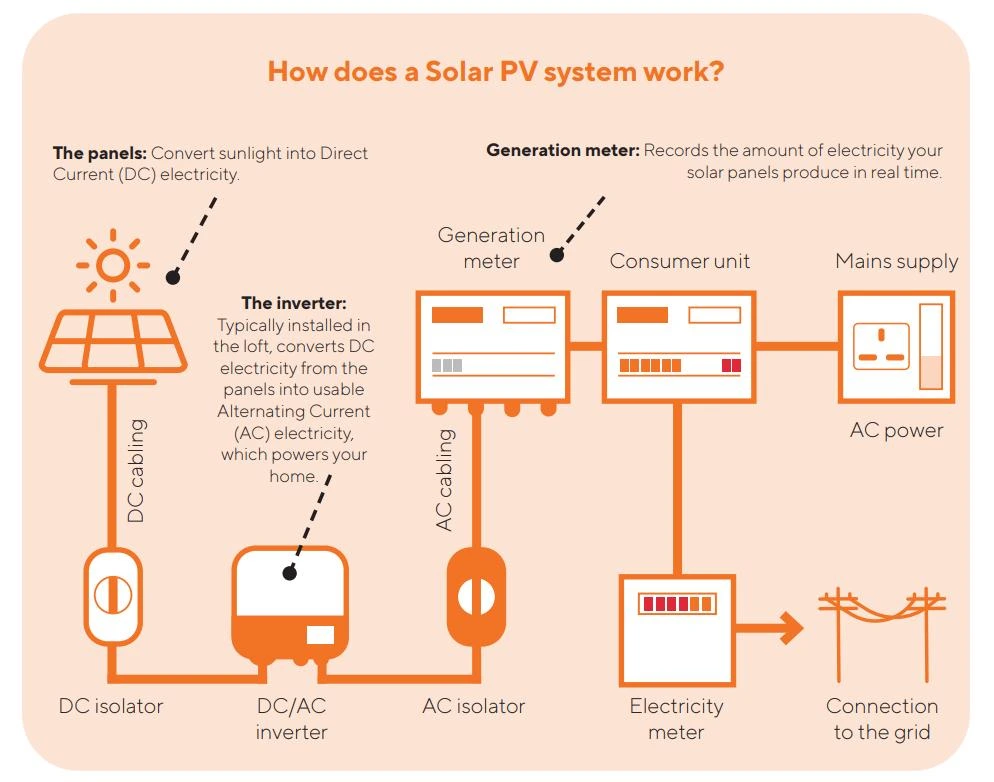

Solar Panel → DC Electricity → Solar Inverter → AC Electricity → Electrical Loads

Without an appropriate inverter, the electricity generated by conventional solar PV modules cannot be properly utilized by most AC electrical equipment.

How Does a Solar Inverter Work?

The basic operation of a solar inverter can be explained through several stages.

1. Solar Panels Generate DC Electricity

When sunlight reaches the photovoltaic cells inside a solar panel, the photovoltaic effect generates direct current electricity.

The amount of electricity produced depends on several factors, including:

• Solar irradiation

• Panel efficiency

• Panel temperature

• Shading

• Panel orientation

• System design

• Weather conditions

The DC electricity generated by multiple solar panels is collected and sent toward the inverter.

2. The Inverter Receives DC Power

The solar inverter receives DC electricity from the PV array.

Inside the inverter, electronic power components control and process this electrical energy.

The inverter continuously manages the incoming power to achieve efficient conversion and maintain appropriate electrical characteristics.

3. MPPT Optimizes Solar Energy Production

One of the most important technologies inside modern solar inverters is Maximum Power Point Tracking (MPPT).

Solar panels do not always operate at the same voltage and current.

Their electrical characteristics change depending on:

• Solar irradiation

• Temperature

• Shading

• Operating conditions

The MPPT system continuously searches for the operating point where the PV array can produce the maximum available power.

This is particularly important in real-world installations where sunlight conditions change throughout the day.

For example, when clouds pass over a solar array, the available solar power changes.

The inverter can respond to these changing conditions and adjust the operating point to maximize energy extraction from the PV system.

4. DC Electricity Is Converted into AC Electricity

After the inverter receives and optimizes the DC power, its power electronics convert the electricity into AC power.

This process is known as DC-to-AC conversion.

The resulting AC electricity is synchronized with the required electrical characteristics of the system.

Depending on the application, the AC output may be used by local electrical loads, connected to an electrical distribution system, or integrated with the utility grid.

5. Electricity Is Delivered to the Load

Once converted into suitable AC electricity, the power can be used to operate electrical equipment.

For an industrial facility, this could include:

• Production machinery

• Pumps

• Electric motors

• Compressors

• HVAC systems

• Lighting

• Material handling equipment

• Control systems

• Office equipment

• IT infrastructure

The solar energy can therefore become a direct source of electricity for daily business operations.
